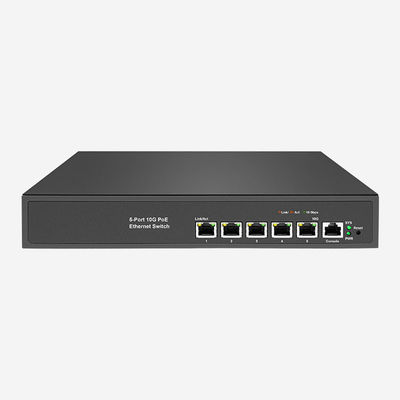

Speed Data Transfer With 10gb PoE Ethernet Switch SSH Security, 5 10Gbps RJ45 Port

  • Speed Data Transfer With 10gb PoE Ethernet Switch SSH Security, 5 10Gbps RJ45 Port
Place of Origin Shenzhen，China
Brand Name Sirivision
Certification CE, ROHS, FCC, UKCA
Model Number SR-ST3005P
Minimum Order Quantity 20
Price Negotiation
Packaging Details 1pc in box, 1pc Warranty Card in box
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50000pcs Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Year Security 802.1X, SSH, SSL, ACLs
Product Name 10gb Layer 3 Switch VLAN Support Yes
Management Web-based GUI, CLI, SNMP Routing Protocols OSPF, BGP, RIP, VRRP (developing)
Port Number 5 Power Supply AC100~240V 50/60Hz
Leave a Message
Product Description

Product Description:

Sirivision 10gb PoE Layer 3 Switch

Brand Name: Sirivision

Sirivision is a leading technology company based in Shenzhen, China that specializes in high-speed networking solutions. With a strong focus on innovation and reliability, Sirivision has become a trusted name in the industry.



Place of Origin: Shenzhen, China
The Sirivision 10gb Layer 3 Switch is proudly designed and manufactured in Shenzhen, China. This strategic location allows for efficient production and delivery of the product to customers around the world.



Management: Web-based GUI, CLI, SNMP
The Sirivision 10gb Layer 3 Switch offers multiple management options, including a user-friendly web-based GUI, a powerful CLI interface, and SNMP for remote monitoring and configuration. This makes it easy for network administrators to manage and configure the switch according to their specific needs.



QoS: Yes
The Sirivision 10gb Layer 3 Switch comes with quality of service (QoS) capabilities, allowing for the prioritization of network traffic and the efficient handling of bandwidth-intensive applications. This ensures a smooth and uninterrupted network experience for users.



PoE Support: Yes
In addition to its high-speed networking capabilities, the Sirivision 10gb Layer 3 Switch also supports Power over Ethernet (PoE), enabling the delivery of power and data over a single Ethernet cable. This feature is especially useful for devices such as IP cameras, wireless access points, and VoIP phones, reducing clutter and simplifying network setup.



Product Name: 10gb Layer 3 Switch
As its name suggests, the Sirivision 10gb Layer 3 Switch offers 10 gigabit Ethernet speeds and layer 3 switching capabilities, making it ideal for high-speed networking in data centers and enterprise environments. With its reliable performance and advanced features, this switch is a must-have for any modern network infrastructure.



Features:

  • Product Name: 10gb Layer 3 Switch
  • Power Supply: AC100-240V 50/60Hz
  • QoS: Yes
  • Warranty: 1 Year
  • Port Number: 5
  • Layer 3 Ethernet Switch
  • 10Gbps Switch
  • Layer Three Switch
  • 1 Year Warranty


Technical Parameters:

Technical Specification Value
Power Supply AC 100-240V 50/60Hz
Standards IEEE 802.3/802.3u/802.3ab/802.3bz/802.3x/802.3cb/802.3af/802.3at
Number of Fans 1
Ports 5 x 100M/1000M/2500M/5G/10Gbps RJ45 ports
Mounting Method Rack mounting
Network Media (Cable)

100BASE-TX:
UTP/STP of Cat. 5 or above (MAX 100 m)

1000BASE-T:
UTP/STP of Cat. 5e or above (MAX 100m)

2.5GBASE-T:
UTP/STP of Cat. 5e or above (MAX 100m)

5GBASE-T:
UTP/STP of Cat. 5e or above (MAX 100m)

10GBASE-T:
UTP of Cat 6 (MAX 55m) or STP of Cat 7 (MAX 100m)
PoE port 4 802.3at/af standard POE
PoE Pin Definition 1/2(+),3/6(-)
PoE power 120W
Dimensions 271*182*45 mm
Port Count 5
Transfer Method Store-and-Forward
MAC Address Table 16K
Switching Capacity 100Gbps
Packet Forwarding Rate 74.4Mpps
Packet Buffer 12Mbit
Jumbo Frame 12KBytes
Environment Operating Temperature: 0℃ ~45℃ Storage Temperature: -40℃ ~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing




Soft Features:

L3 Features IPV4/IPV6
Dynamic ARP
L2 Features Flow Control
802.3x (full duplex)
Back pressure (half duplex)
Link aggregation
Spanning Tree 802.1D (STP),802.1w (RSTP),802.1s (MSTP)
ERPS,BPDU Filtering
Automatic Edge Port
VLAN 8 groups Protocol-based VLAN
support VLAN Translation
256 MAC-based VLAN
Voice VLAN
Monitoring VLANs
IEEE802.1q VLAN,QinQ (IEEE 802.1ad),GVRP,Private VLAN,GVRP,VLAN VPN
4096 static VLANs
multicast IGMP Snooping(v1,v2,v3)
MVR, MLD Snooping V1/V2
Multicast VLAN Registration (MVR)
QoS 8 priority queues per port
Support port-based and VLAN-based PolicyMap binding
TOS, DSCP, 802.1p priority field rewrites
Queue Scheduling WRR,WFQ,WRR+SP, WFQ+SP
Support flow classification based on ACL flow, COS, TOS, DSCP
ACL Custom ACL, MAC-based, IP-based, port-based
Security Features IEEE 802.1X certification,Guest VLAN,Port-based,Host-based,MAC Auth,Web Auth
Storm Control, Ports Security,Port Isolation
DHCP Snooping,CPU Defence Engine,DoS Prevention,256 IP Source Guard
Dynamic ARP Check,IP,MAC,Port Binding,Dynamic VLAN Assignment,Management Access,
HTTPS,BPDU,SSH v1/v2,8 TACACS+,8 RADIUS
Management Supported CLI, Console, SNMP v1/v2/V3, Web, RMON management
Diagnosis mirror Many-to-One
UDLD,System Log (RFC3164)
System Diagnosis,Port Diagnostics,Network Diagnosis



Applications:

Application Scenarios:
  • Data Centers: The Sirivision 10gb Layer 3 Switch is designed to meet the high demands of data centers, providing fast and reliable connectivity for servers, storage devices, and other network equipment. Its QoS capabilities make it an ideal choice for data centers that require efficient resource allocation and management.
    Enterprises: With its high-speed networking and advanced features, the Sirivision 10gb Layer 3 Switch is well-suited for enterprise environments. It can support a large number of users and devices, ensuring smooth and uninterrupted network connectivity for day-to-day operations.
    Network Infrastructure: The Sirivision 10gb Layer 3 Switch is a crucial component in any modern network infrastructure, providing a high-speed backbone for data transmission and efficient management of network resources. Its flexibility and scalability make it suitable for a wide range of network setups and applications.
    Key Features:
    10 gigabit Ethernet speeds
    Layer 3 switching capabilities
    Multiple management options
    Quality of service (QoS) support
    Power over Ethernet (PoE) support
    Flexible and scalable
    Reliable performance
Speed Data Transfer With 10gb PoE Ethernet Switch SSH Security, 5 10Gbps RJ45 Port 0

Customization:

Sirivision 10gb Layer 3 Switch - Customized Service

Brand Name: Sirivision

Place of Origin: Shenzhen, China

Port Number: 5

VLAN Support: Yes

Warranty: 1 Year

Routing Protocols: OSPF, BGP, RIP, VRRP

Experience lightning-fast network speeds with Sirivision's 10gb Layer 3 Switch. Based in Shenzhen, China, Sirivision offers top-of-the-line networking products with customized services to meet your specific needs.

Our 10 gigabit network switch is equipped with 5 ports, providing ample connectivity for your network.

Experience seamless communication between devices with VLAN support, ensuring secure and efficient data transfer. Our 10gb Layer 3 Switch comes with a 1-year warranty, providing peace of mind and reliability for your network.

Our switch also supports various routing protocols including OSPF, BGP, RIP, and VRRP, ensuring flexibility and compatibility with your network setup.



FAQ:

  • Q: What is the brand name of this product?
    A: The brand name of this product is Sirivision.
  • Q: Where is this product manufactured?
    A: This product is manufactured in Shenzhen, China.
  • Q: What is the capacity of this Layer 3 Switch?
    A: The capacity of this Layer 3 Switch is 10gb.
  • Q: What type of switch is this product?
    A: This product is a Layer 3 Switch.
  • Q: What makes this product stand out from other switches?
    A: This product is equipped with 10gb capacity, making it suitable for high-speed and high-volume data transfer.
