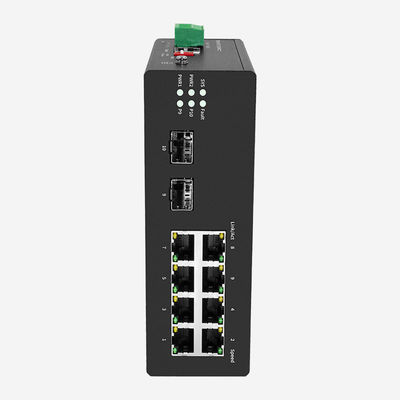

Industrial Gigabit Layer 2+ Managed Switch 20Gbps Switching Capacity, Intput Voltage 44V-57V For Performance

  • Industrial Gigabit Layer 2+ Managed Switch 20Gbps Switching Capacity, Intput Voltage 44V-57V For Performance
Place of Origin Shenzhen，China
Brand Name Sirivision
Certification CE, ROHS, FCC, UKCA
Model Number SR-SHG3210FPI
Minimum Order Quantity 20
Price Negotiation
Packaging Details 1pc in box, 1pc Warranty Card in box
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50000pcs Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Industrial Gigabit Smart Switch PoE Port 8 802.3at/af Standard POE+
Connection Type Wired Input Voltage 44V-57V
Power Supply DC Material ABS/PC/Aluminum
Highlight

Industrial Layer 2+ Managed Switch

,

20Gbps Layer 2+ Managed Switch

,

44V-57V Layer 2+ Managed Switch
Leave a Message
Product Description

Product Description:

The Industrial L2+ Managed Switch is built to withstand extreme temperatures, with a working temperature range of -40℃ to 75℃. It is constructed from high-quality materials, including ABS, PC, and aluminum, which provide durability and protection from harsh environmental conditions.



With the Industrial Smart Switch, you can easily manage your network and connected devices. It includes advanced management features, such as VLAN support, QoS, and SNMP, which allow you to optimize your network performance and ensure reliable connectivity. This switch is also designed with security in mind, with features such as port security and MAC filtering to protect your network from unauthorized access.



Whether you need an industrial managed PoE switch, an industrial Ethernet switch PoE, or a reliable switch for your IoT applications, the Industrial Smart Switch is the perfect choice. With its robust design, and advanced management features, this switch is a versatile and reliable solution for a wide range of industrial applications.



Features:

  • Product Name: Industrial Gigabit L2+ Managed Switch
  • Power Supply: 44V-57V DC
  • Size: 149mm*122mm*50mm
  • Connection Type: Wired
  • Features:
    • Industrial managed PoE switch
    • Industrial managed switch
    • Industrial PoE+ switch


Technical Parameters:

SR-SHG3210FPI
Power Supply 44~ 57 VDC/ 3A(MAX)
Standards

IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab, 802.3af,

802.3at
Ports 8×10/100/1000Mbps RJ45 ports+2×SFP ports
Indicators

Speed Indicators, Link/Act Indicators, SFP Indicators, PWR1,

PWR2, SYS
Ethernet Port Feature

10/100/1000BaseT (X) automatic detection, full / half duplex

MDI/MDI-X adaptive
SFP Port Characteristic

Gigabit SFP optical fiber interface, default matching optical

modules, need to buy separately, (optional order mode / multi-

mode, single fiber / double fiber optical module.
Forwarding Mode Store and Forward(Full Wire Speed)
Dimensions 153 mm * 122 mm * 50 mm
PoE port 8 802.3at/af standard POE
Max / Average Power Port 30W per port
Power Consumption Standby:<10W(NOT PoE);Full load:<150W(with PoE)
MAC Address Table 8K
Switching Capacity 20Gbps
Packet Forwarding Rate 14.88Mpps
Packet Buffer 4Mbit
Installation DIN-rail/wall mount
Net /Gross Weight <1.2kg / <1.5kg
Warranty 3 years , lifelong maintenance
Environment Operating Temperature: -40℃ — 75℃ (-40℉~167℉)
Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

When choosing an industrial smart switch, it's important to consider the product's technical parameters. As industrial ethernet switch manufacturers offer a range of options, you'll want to focus on attributes like switching capacity and protection level to find the right solution for your needs. In addition to industrial smart switches, you may also want to consider industrial fiber switch and industrial poe switch options to build a comprehensive network infrastructure.



Soft Features:

L3 Features IPV4/IPV6
Dynamic ARP
L2 Features Flow Control
802.3x (full duplex)
Back pressure (half duplex)
Link aggregation
Spanning Tree 802.1D (STP),802.1w (RSTP),802.1s (MSTP)
ERPS,BPDU Filtering
Self-loop detection
Automatic Edge Port
VLAN Port based VLAN(4k)
MAC address-based VLANs
protocol based VLAN
Voice VLAN
Monitoring VLANs
IEEE802.1q VLAN,QinQ (IEEE 802.1ad),GVRP
4096 static VLANs
multicast IGMP Snooping(v1,v2,v3)
Multicast VLAN, 1024 multicast groups
MLD Snooping V1/V2
Multicast VLAN Registration (MVR)
Industrial Ring Network ERPS Ring<20ms
QoS 8 priority queues per port
TOS, DSCP, 802.1p priority field rewrites
Queue Scheduling WRR,WFQ,WRR+SP, WFQ+SP
ACL L2/L3/L4, MAC-based, IP-based, port-based, VLAN-based
Security Features IEEE 802.1X certification
Storm Control
DHCP Snooping
Dynamic ARP Check
BPDU,SSH v1/v2
Management Supported CLI, Console, SNMP v1/v2/V3, Web, RMON management
Diagnosis mirror Many-to-One
UDLD,System Log (RFC3164)
System Diagnosis,Port Diagnostics,Network Diagnosis





Applications:

This industrial managed switch is ideal for use in factories, warehouses, transportation hubs, and other harsh industrial environments. It can withstand extreme temperatures, humidity, and vibrations, making it the perfect choice for industrial automation and control systems.



The Sirivision Industrial Smart Switch is a powerful device that supports a range of features, including VLAN, QoS, IGMP Snooping, and SNMP. With its advanced management capabilities, this industrial managed switch can provide real-time monitoring and control of network traffic, ensuring optimal performance and reliability.



This industrial gigabit switch is also equipped with PoE (Power over Ethernet) technology, which enables it to power PoE-enabled devices such as IP cameras, wireless access points, and VoIP phones.



Whether you need to connect multiple devices in a factory or provide network connectivity in a transportation hub, the Sirivision Industrial Smart Switch is the perfect choice. With its rugged design, advanced management capabilities, and PoE technology, this industrial managed PoE switch is the ultimate solution for industrial networking and automation.



With a place of origin in Shenzhen, China, the Sirivision Industrial Smart Switch is a top-quality product that is trusted by professionals worldwide. Its working humidity range of 0%-95%RH makes it suitable for use in almost any environment.



Industrial Gigabit Layer 2+ Managed Switch 20Gbps Switching Capacity, Intput Voltage 44V-57V For Performance 0



Customization:

Customize your Industrial Smart Switch from Sirivision, one of the leading industrial ethernet switch manufacturers from Shenzhen, China. The switch is designed to operate in a wide range of conditions with a working temperature of -40℃ to 75℃. With our product customization services, you can tailor the Industrial Smart Switch to your specific needs and optimize your industrial managed switch operations.



FAQ:

Q: What is the brand name of this Industrial Smart Switch?

A: The brand name of this Industrial Smart Switch is Sirivision.

Q: Where is this Industrial Smart Switch manufactured?

A: This Industrial Smart Switch is manufactured in Shenzhen, China.

Q: What are the dimensions of this Industrial Smart Switch?

A: The dimensions of this Industrial Smart Switch are [149*122*50mm].

Q: What are the input voltage requirements for this Industrial Smart Switch?

A: The input voltage requirements for this Industrial Smart Switch are [44-57V DC]

Q: What kind of warranty is offered for this Industrial Smart Switch?

A: Please refer to the product warranty information for details on the warranty offered for this Industrial Smart Switch.
