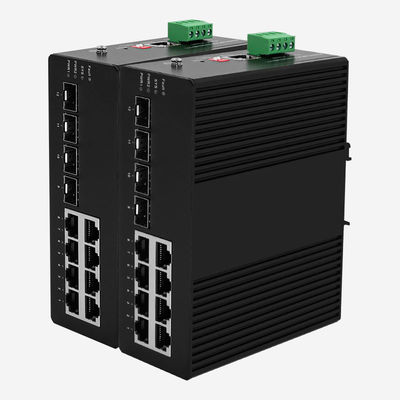

Network Management Layer 2+ Managed Gigabit Industrial poE Switch With 8 RJ45 And 8 SFP Ports

  • Network Management Layer 2+ Managed Gigabit Industrial poE Switch With 8 RJ45 And 8 SFP Ports
Place of Origin Shenzhen，China
Brand Name Sirivision
Certification CE, ROHS, FCC, UKCA
Model Number SR-SHG3412FPI
Minimum Order Quantity 20
Price Negotiation
Packaging Details 1pc in box, 1pc Warranty Card in box
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50000pcs Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Speed 1000 Mbps Port Number 10/100/1000
VLAN Yes Material ABS/PC/Aluminum
Protection Level IP30 Security Yes
QoS Yes
Highlight

8 RJ45 Gigabit Industrial poE Switch

,

8 RJ45 Gigabit Industrial poE Switch

,

Network Management Gigabit Industrial poE Switch
Leave a Message
Product Description

Product Description:

The Industrial Smart Switch is a managed PoE switch, making it ideal for powering a wide range of devices, including wireless access points, IP cameras, and other network devices. The switch is designed to operate in harsh industrial environments and is constructed from robust materials, such as ABS, PC, and aluminum, to ensure durability and longevity.



This Layer 2+ switch offers advanced security features such as Access Control Lists (ACLs) and port security, ensuring that only authorized devices have access to your network. Additionally, this switch supports Power over Ethernet (PoE) which allows you to power compatible devices, such as IP cameras and wireless access points, directly from the switch, eliminating the need for separate power sources.


With a compact size of 149mm*122mm*50mm, this industrial PoE+ switch is easy to install and can be used in a variety of applications, including factory automation, process control, and building automation. The switch supports both wired and wireless connections, allowing businesses to choose the most appropriate connection type for their specific needs.


One of the key features of the Industrial Smart Switch is its ability to operate in environments with high humidity levels. The switch can operate in conditions with up to 95% relative humidity, making it ideal for use in areas where moisture is a concern.


The Industrial Smart Switch is a reliable and secure networking solution that can help businesses optimize their network performance. With its advanced management features and high-speed connectivity, this industrial managed PoE switch is ideal for businesses that require a robust and reliable networking solution.


This Layer 2+ switch provides the perfect combination of performance and security. With its advanced features, it is capable of meeting the requirements of even the most demanding applications. It is easy to manage and provides a range of features that can be customized to meet your business needs.



Overall, our Layer 2+ Managed Gigabit Switch is an excellent choice for businesses looking for a reliable and secure network solution. Its advanced security features, PoE support, and easy management make it the perfect choice for small to medium-sized businesses. So, invest in this Layer 2 switch today and enjoy seamless connectivity with advanced features.



Features:

  • Product Name: Industrial Gigabit Layer 2+ Managed Switch
  • Switching Capacity: 24Gbps
  • Material: ABS/PC/Aluminum
  • PoE: Yes
  • Working Humidity: 0%-95%RH



This product can also be referred to as an industrial gigabit switch , industrial managed switch , or industrial managed poe switch.



Technical Parameters:

SR-SHG3412FPI
Power Supply 48 VDC (44~ 57 VDC)/ 3A(MAX)
Standards IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab, 802.3af, 802.3at
Ports 8×10/100/1000Mbps RJ45+4×SFP
Indicators Speed 1000M (green), network Indicators: Link (yellow), SFP Indicators: L/A (green)
Ethernet Port Feature 10/100/1000BaseT (X) automatic detection, full / half duplex MDI/MDI-X adaptive
SFP Port Characteristic Gigabit SFP fiber interfaces, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical modules).
Forwarding Mode Store and Forward(Full Wire Speed)
Dimensions 149.2*122*50mm
PoE port 8 802.3at/af standard POE
Max / Average Power Port 30W per port
Power Consumption Standby:<10W(NOT PoE);Full load:<250W(with PoE)
MAC Address Table 8K
Switching Capacity 24Gbps
Packet Forwarding Rate 17.856Mpps
Packet Buffer 4Mbit
Net /Gross Weight 0.85±0.05kg / 0.95±0.05kg
Warranty 3 years , lifelong maintenance
Environment Operating Temperature: -40℃ — 75℃ (-40℉~167℉)
Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing



Soft Features:

L3 Features IPV4/IPV6
Dynamic ARP
L2 Features Flow Control
802.3x (full duplex)
Back pressure (half duplex)
Link aggregation
Spanning Tree 802.1D (STP),802.1w (RSTP),802.1s (MSTP)
ERPS,BPDU Filtering
Self-loop detection
Automatic Edge Port
VLAN Port based VLAN(4k)
MAC address-based VLANs
protocol based VLAN
Voice VLAN
Monitoring VLANs
IEEE802.1q VLAN,QinQ (IEEE 802.1ad),GVRP
4096 static VLANs
multicast IGMP Snooping(v1,v2,v3)
Multicast VLAN, 1024 multicast groups
MLD Snooping V1/V2
Multicast VLAN Registration (MVR)
Industrial Ring Network ERPS Ring<20ms
QoS 8 priority queues per port
TOS, DSCP, 802.1p priority field rewrites
Queue Scheduling WRR,WFQ,WRR+SP, WFQ+SP
ACL L2/L3/L4, MAC-based, IP-based, port-based, VLAN-based
Security Features IEEE 802.1X certification
Storm Control
DHCP Snooping
Dynamic ARP Check
BPDU,SSH v1/v2
Management Supported CLI, Console, SNMP v1/v2/V3, Web, RMON management
Diagnosis mirror Many-to-One
UDLD,System Log (RFC3164)
System Diagnosis,Port Diagnostics,Network Diagnosis


Applications:

With switching capacity of up to 24Gbps, Sirivision's industrial smart switches are suitable for large-scale industrial networks that require high-speed data transmission. The switches are equipped with protection level ranging from IP30, which makes them ideal for use in dusty and humid environments.



These switches have a wide working temperature range of -40℃ to 75℃, allowing them to function smoothly in extreme weather conditions.



Sirivision's industrial managed PoE switches come with rated current of 2.5A(MAX), which is suitable for powering various industrial devices such as IP cameras, access points, and other PoE-enabled devices.



These industrial smart switches are perfect for a variety of industrial applications, including:



Manufacturing facilities: Sirivision's industrial gigabit switches can be used in manufacturing facilities to connect different machines and devices in the production line. This helps to improve efficiency and productivity.


Oil and gas industry: Sirivision's industrial managed PoE switches are ideal for use in the oil and gas industry, where there are harsh environmental conditions. They provide reliable network connectivity for monitoring equipment and sensors in remote locations.


Transportation sector: Sirivision's industrial smart switches can be used in the transportation sector to provide high-speed network connectivity for traffic management systems, CCTV cameras, and other communication systems.


Power plants: Sirivision's industrial gigabit switches can be used in power plants to connect various machines and devices in the power generation and distribution processes. This helps to improve efficiency and reduce downtime.


In summary, Sirivision's industrial managed PoE switch is a reliable and efficient solution for various industrial applications, providing stable network connectivity and power supply for different devices.



Customization:

Customize your Sirivision Layer 2+ Managed Gigabit Switch to meet your specific network needs with our product customization services. Our fully managed switch is designed to provide reliable and secure network connectivity for your business.



With our customization services, you can choose the specific features you need for your network, including security options to keep your data safe. Our layer 2 switch provides fast 1000 Mbps speeds for efficient data transfer.



As a Sirivision product, our Layer 2+ Managed Gigabit Switch is made in Shenzhen, China with high-quality components and expert craftsmanship. And with a 3-year warranty, you can trust in the durability and longevity of your customized switch.

 Network Management Layer 2+ Managed Gigabit Industrial poE Switch With 8 RJ45 And 8 SFP Ports 0





FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is Sirivision.

Q: Where is this product made?

A: This product is made in Shenzhen, China.

Q: Is this a Layer 2+ Managed Gigabit Switch?

A: Yes, this product is a Layer 2+ Managed Gigabit Switch.

Q: What are the key features of this switch?

A: Some of the key features of this switch include advanced QoS, VLAN support, IGMP snooping, and port mirroring.
