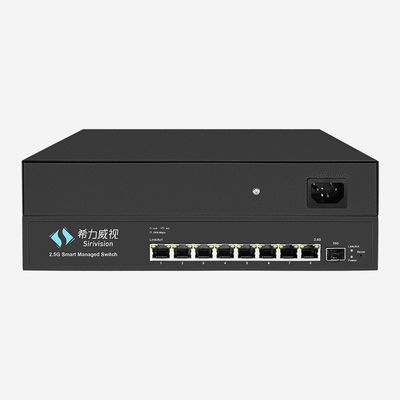

8 RJ45 Ports 2.5 Gigabit Ethernet Switch With Store-And-Forward And 4K MAC Address Table

  • 8 RJ45 Ports 2.5 Gigabit Ethernet Switch With Store-And-Forward And 4K MAC Address Table
Place of Origin Shenzhen，China
Brand Name Sirivision
Certification CE, ROHS, FCC, UKCA
Model Number SR-S25G2109F-U13
Minimum Order Quantity 20
Price Negotiation
Packaging Details 1pc in box, 1pc Warranty Card in box
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50000pcs Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Network Media 10BASE-T: UTP Category 3, 4, 5 Cable (Max 100m), EIA/TIA-586 100-ohm STP (Max 100m), 100BASE-TX: UTP Category 5, 5e Cable (Max 100m), EIA/TIA-568 100-ohm STP (Max 100m), 1000BASE-T: UTP Category 5, 5e, 6 Cable (Max 100m) Product Name 2.5 Gigabit Switch
MAC Address Table 4K Operating Temperature 0°C~45°C (32°F~113°F)
Switch Architecture Store-and-Forward LED Indicators Power, Link/Act, Speed
Highlight

Store-And-Forward 2.5 Gigabit Ethernet Switch

,

2.5 Gigabit Ethernet Switch

,

8 RJ45 Ports 2.5 Gigabit Ethernet Switch
Leave a Message
Product Description

Product Description:

The switch comes equipped with LED indicators for power and link/activity, providing useful status information at a glance. Additionally, it supports a wide range of network protocols, including IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3cb, and IEEE 802.3z, ensuring compatibility with a variety of devices and systems.



The 2.5 Gigabit Switch is designed to be easy to use and install, with a compact form factor that makes it ideal for small and medium-sized businesses. It can be powered using a standard 100-240VAC, 50/60Hz power supply, making it easy to integrate into existing network infrastructures.



With 8 ports, the switch provides ample connectivity options for a wide range of devices and systems. It supports a variety of network media, including 10BASE-T UTP Category 3, 4, and 5 cables (max 100m), 100BASE-TX UTP Category 5 and 5e cables (max 100m), 1000BASE-T UTP Category 5, 5e, and 6 cables (max 100m) and 2500BASE-T UTP Category 5, 5e, and 6 cables (max 100m), providing flexibility and versatility in network configurations.



Overall, the 2.5 Gigabit Switch is a powerful and reliable networking solution for businesses that require high-speed connectivity and efficient data transmission. Whether you're looking for a 2.5 gigabit Ethernet switch, a 2.5 Gbps switch, or a 2.5 G Ethernet switch, this device is an excellent choice that delivers exceptional performance and value.



Features:

  • Product Name: 2.5 Gigabit Switch
  • Network Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3cb, IEEE 802.3z
  • Number of Ports: 8
  • Data Transfer Rate: 2.5Gbps
  • MAC Address Table: 4K
  • Switching Capacity: 60Gbps

This is a 2.5 gigabit ethernet switch, also known as a 2.5 gb managed switch. It supports multiple network protocols such as IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3cb, and IEEE 802.3z. It has 8 ports and can transfer data at a rate of 2.5Gbps. The switch has a MAC address table of 4K and a switching capacity of 60Gbps.



Technical Parameters:

Property Value
Network Protocols IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3z, IEEE 802.3af/at
MAC Address Table 4K
Cache 8Mbit
Dimensions 271 X 182 X 45 Mm
Jumbo Frame 12KBytes
Power Supply 100-240VAC, 50/60Hz
LED Indicators Power, Link/Act, Speed
Switch Architecture Store-and-Forward
Switching Capacity 60Gbps
Ports 8 10,100,1000,2500Mbps RJ45 ports, 1 10Gbps SFP+ port
Operating Temperature 0°C~45°C
Number of Ports 9
Data Transfer Rate 2.5Gbps



Soft Features:

L2 Switching Features • IGMP Snooping
- Supports IGMP Snooping
• Link Aggregation
- Supports static link aggregation
• Port Mirroring
• Cable Test
VLAN • Supports up to 32 VLANs (out of 4K VLAN IDs
• MTU/Port/802.1Q VLAN
Quality of Service
(QoS)		 • Support Port-based/802.1p/DSCP priority
• Support 4 priority queues
• Storm Control
• Rate Limit
Management

• Web-based Graphic User Interface (GUI)

• Smart-Configuration Utility
Ethernet Protocols • IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX/FX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1q VLANs/VLAN tagging
• IEEE 802.1p QoS



Applications:

The Sirivision 2.5 Gigabit Switch is a high-performance network switch designed for various occasions and scenarios. As a product of Shenzhen, China, it features a robust power supply of 100-240VAC, 50/60Hz, which makes it ideal for use in different power environments without the need for a voltage converter.



The 2.5 Gigabit Switch is an excellent fit for businesses, organizations, and institutions that require high-speed network connections. With support for different network media, including UTP Category 3, 4, 5 Cable (Max 100m), it can seamlessly connect different devices, including computers, printers, servers, and more. This makes it an excellent choice for businesses and organizations with a high number of devices that require a stable and fast network connection.



The 2.5 Gigabit Switch is also ideal for use in large households or homes with multiple devices that need a reliable network connection. With support for fast network protocols such as IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3cb, IEEE 802.3z, it provides fast and stable connectivity for devices such as smart TVs, gaming consoles, laptops, and smartphones.



The 2.5 Gigabit Switch also features LED indicators for power and link/act status, making it easy to monitor the network's status. It is a reliable and high-performance 2.5 gigabit ethernet switch that provides fast and stable connectivity in various scenarios and occasions.

8 RJ45 Ports 2.5 Gigabit Ethernet Switch With Store-And-Forward And 4K MAC Address Table 0





Customization:

Customize your Sirivision 2.5 Gigabit Ethernet Switch to fit your exact needs!



Our product customization services allow you to choose the specifications that work best for you. Our 2.5 Gb Ethernet Switch is proudly made in Shenzhen, China and has a dimensions of 271 X 182 X 45 Mm. It has an operating temperature of 0°C~45°C (32°F~113°F) and a switching capacity of 60Gbps. The power supply is 100-240VAC, 50/60Hz. The MAC address table has a capacity of 4K.



Customize your switch to meet all your networking needs. Contact us today to get started!



FAQ:

Q: What is the brand name of the 2.5 Gigabit Switch?

A: The brand name of the 2.5 Gigabit Switch is Sirivision.

Q: Where is the 2.5 Gigabit Switch manufactured?

A: The 2.5 Gigabit Switch is manufactured in Shenzhen, China.

Q: What is the maximum data transfer rate of the 2.5 Gigabit Switch?

A: The maximum data transfer rate of the 2.5 Gigabit Switch is 2.5 Gigabits per second.

Q: How many Ethernet ports does the 2.5 Gigabit Switch have?

A: The 2.5 Gigabit Switch has 9 Ethernet ports.

Q: Is the 2.5 Gigabit Switch compatible with IEEE 802.3af/at PoE standards?

A: No, the 2.5 Gigabit Switch is not compatible with IEEE 802.3af/at PoE standards.
