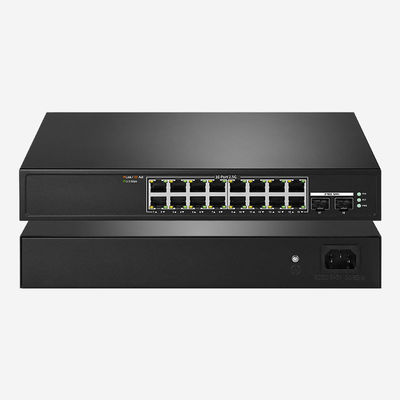

260W Rack Mount Ethernet 2.5g Unmanaged Switch With 16 2.5G RJ45 And 2 10g SFP+Ports

  • 260W Rack Mount Ethernet 2.5g Unmanaged Switch With 16 2.5G RJ45 And 2 10g SFP+Ports
Place of Origin Shenzhen，China
Brand Name Sirivision
Certification CE, ROHS, FCC, UKCA
Model Number SR-S25G1218FP
Minimum Order Quantity 20
Price Negotiation
Packaging Details 1pc in box, 1pc Warranty Card in box
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50000pcs Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
PoE Support Yes Jumbo Frame Support Yes
Port Speed 10/100/1000/2500 Mbps PoE Power 230W
MAC Address Table Yes Mounting Method Desktop/rack Mount
Highlight

260W Rack Mount 2.5g Unmanaged Switch

,

2 10g SFP+Ports 2.5g Unmanaged Switch

,

16 2.5G RJ45 2.5g Unmanaged Switch
Leave a Message
Product Description

Product Description:

With jumbo frame support, this unmanaged Ethernet switch allows for the transmission of larger frames than traditional Ethernet switches. This means that you can transfer data more quickly and efficiently, making it ideal for high-bandwidth applications like video streaming and file sharing.



This unmanaged Ethernet switch comes with an internal power supply, so you don't have to worry about finding a power source for your network devices.



Overall, if you're looking for a simple and cost-effective networking solution, this unmanaged Ethernet switch is the perfect choice. With its  jumbo frame support, and internal power supply, this dumb switch is a reliable and efficient choice for your networking needs.



Features:

  • Product Name: 2.5g Unmanaged Ethernet Switch
  • Switching Capacity: 120Gbps
  • Mounting Method: Desktop/rack
  • Port Speed: 10/100/1000/2500 Mbps
  • Port Type: 2.5G RJ45+10G SFP+
  • Dimensions: 290mm X 202mm X 44mm


Technical Parameters:

SR-S25G1218FP
Power Supply AC100~240V 50/60Hz
Standards IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.3af,IEEE 802.3at
Ports 16 x 10/100/1000/2500Mbps RJ45 ports, 2 x 10G SFP+ slots
Indicators 16 x 10/100/1000/2500M link/act indicators, 16 x 2.5G electrical port link indicators, power
Network Media (Cable)

10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m)

1000Base-T: UTP category 5e, 6 cable (maximum 100m)

2.5GBase-T: UTP category 5e, 6 cable (maximum 100m)

1000BASE-SX: 62.5um MMF (minimum range: 2 meters to 275 meters) or 50um MMF (Minimum range: 2 meters to 550 meters)

1000BASE-LX: 62.5um/50um MMF (min. range: 2m~550m) or 9um SMF (Minimum range: 2m~5000m)

10GBASE-SR: OM1/OM2/OM3 or above MMF (Operating range: 2m ~ 300m) 10GBASE-LR: IEC's B1.1 and B1.3 SMF (minimum range: 2m ~ 10,000m)
Dimensions 290*202*44mm
Transfer Method Store-and-Forward
PoE port 16 802.3at/af standard POE+
PoE Pin Definition 1/2(+),3/6(-)
PoE Power 230W
Total Power 260W
Switching Capacity 120Gbps
MAC Address Table 16K
Packet Buffer 12Mbit
Jumbo Frame 12KBytes
Packet Forwarding Rate 89.28Mpps
Environment Operating Temperature: 0℃ ~45℃ (32℉~113℉)
Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing





Applications:

With 16 ports available, this unmanaged desktop switch offers plenty of room for all your devices to connect. Plus, with jumbo frame support, you can be sure that your network will be running smoothly at all times.



Whether you need to connect computers, printers, servers, or other devices, the Sirivision unmanaged switch is the perfect choice. It's easy to install and configure, so you can get up and running in no time. Plus, with its compact dimensions of 290mm X 202mm X 44mm, it won't take up too much space on your desk or in your server room.



This unmanaged switch is able to maintain a cool operating temperature even under heavy loads. This helps to ensure that your network stays up and running without any issues, even during peak usage periods.



The Sirivision unmanaged Ethernet switch is proudly manufactured in Shenzhen, China, using only the highest quality components. So if you're looking for a reliable and cost-effective networking solution, look no further than Sirivision.

260W Rack Mount Ethernet 2.5g Unmanaged Switch With 16 2.5G RJ45 And 2 10g SFP+Ports 0

Customization:

Customize your unmanaged desktop switch from Sirivision, a trusted brand originating from Shenzhen, China. Our switch comes with internal power supply to ensure high-quality network performance. Choose from our 10/100/1000/2500 Mbps port speed options and desktop/rack mounting method to fit your specific needs. Contact us to learn more about customizing your unmanaged switch or explore our other options including unmanaged SFP switches.
