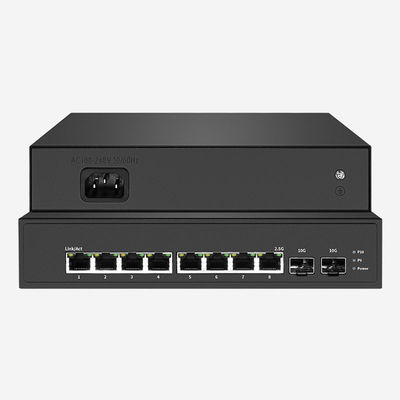

150W 8-Port RJ45 1000BASE-T Network Media 2.5 G PoE Switch With 2 10G SFP Slot, 802.3af/At (PoE+) Standard

Place of Origin Shenzhen,China
Brand Name Sirivision
Certification CE, ROHS, FCC, UKCA
Model Number SR-S25G1210FP
Minimum Order Quantity 20
Price Negotiation
Packaging Details 1pc in box, 1pc Warranty Card in box
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50000pcs Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply 100-240VAC, 50/60Hz Dimensions 218*167*44 Mm
Number Of Ports 8 10/100/1000M RJ45 Ports Operating Temperature 0°C~45°C (32°F~113°F)
Data Transfer Rate 2.5Gbps PoE Port 8 802.3at/af Standard POE
Highlight

2.5 G PoE Switch With 2 SFP

,

1000BASE-T Network Media Switch

,

150W 8-Port Network Media Switch

Leave a Message
Product Description

Product Description:

The 2.5 Gigabit Switch has a switching capacity of 80Gbps, which means that it can handle high levels of data traffic without any delays or interruptions. It has a data transfer rate of 2.5Gbps, which is faster than traditional Ethernet switches. This makes the 2.5 Gigabit Switch an excellent choice for businesses that require fast and reliable connectivity.



The switch architecture of the 2.5 Gigabit Switch is store-and-forward, which means that it checks the integrity of each packet before forwarding it to its destination. This ensures that data is transmitted accurately and without any errors. Additionally, the 2.5 Gigabit Switch is a managed switch, which means that it can be configured to meet the specific needs of your business.



The 2.5 Gigabit Switch is an excellent choice for businesses that require high-performance connectivity. Its fast data transfer rate, high switching capacity, and store-and-forward architecture make it an ideal choice for businesses that require reliable connectivity. Additionally, the switch is easy to install and configure, making it an excellent choice for businesses that do not have dedicated IT staff.



In conclusion, the 2.5 Gigabit Switch is a high-performance switch that is ideal for small to medium-sized businesses. Its fast data transfer rate, high switching capacity, and store-and-forward architecture make it an excellent choice for businesses that require reliable connectivity. Additionally, the switch is easy to install and configure, making it an excellent choice for businesses that do not have dedicated IT staff. If you're in the market for a 2.5 gig managed switch, 2.5 gigabit ethernet switch, or 2.5 gig switch, the 2.5 Gigabit Switch is an excellent choice.



Features:

  • Product Name: 2.5 Gigabit Switch
  • Network Media:
    • 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
    • 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
    • 1000Base-T: UTP category 5e, 6 cable (maximum 100m)
    • 2.5GBase-T: UTP category 5e, 6 cable (maximum 100m)
    • 1000BASE-SX: 62.5um MMF (minimum range: 2 meters to 275 meters) or 50um MMF (Minimum range: 2 meters to 550 meters)
    • 1000BASE-LX: 62.5um/50um MMF (min. range: 2m~550m) or 9um SMF (Minimum range: 2m~5000m)
    • 10GBASE-SR: OM1/OM2/OM3 or above MMF (Operating range: 2m ~ 300m) 10GBASE-LR: IEC's B1.1 and B1.3 SMF (minimum range: 2m ~ 10,000m)
  • Network Protocols:
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3x
    • IEEE 802.3bz
    • IEEE 802.3cb
  • Jumbo Frame: 12KB
  • MAC Address Table: 16K
  • Operating Temperature: 0°C~45°C (32°F~113°F)

Keywords: 2.5 gig switch, 2.5 g ethernet switch, 2.5 g poe switch



Technical Parameters:

Attribute Specification
Product Name 2.5 Unmanaged Gigabit Switch
Operating Temperature 0°C~45°C (32°F~113°F)
Switch Architecture Store-and-Forward
LED Indicators 8 x 10/100/1000/2500M link/act indicators, 8 x 2.5G electrical port link indicators, power
Switching Capacity 80Gbps
Jumbo Frame 12KB
Data Transfer Rate 2.5Gbps
Power Supply 100-240VAC, 50/60Hz
Network Protocols IEEE 802.3/802.3u/802.3ab/802.3bz/802.3x/802.3cb/802.3z/802.3at/802.3af
Ports 8 x 10/100/1000/2500Mbps RJ45 ports, 2 x 10G SFP+ slots
Network Media (Cable) 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) 1000Base-T: UTP category 5e, 6 cable (maximum 100m) 2.5GBase-T: UTP category 5e, 6 cable (maximum 100m) 1000BASE-SX: 62.5um MMF (minimum range: 2 meters to 275 meters) or 50um MMF (Minimum range: 2 meters to 550 meters) 1000BASE-LX: 62.5um/50um MMF (min. range: 2m~550m) or 9um SMF (Minimum range: 2m~5000m) 10GBASE-SR: OM1/OM2/OM3 or above MMF (Operating range: 2m ~ 300m) 10GBASE-LR: IEC's B1.1 and B1.3 SMF (minimum range: 2m ~ 10,000m)
Dimensions 218*167*44 mm
PoE port 8 802.3at/af standard POE
PoE Pin Definition 1/2(+),3/6(-)
PoE power 130W
Total power 150W
MAC Address Table 16K
Packet Forwarding Rate 59.52Mpps
Packet Buffer 12Mbit
Jumbo Frame 12KBytes
Environment Operating Temperature: 0℃ ~45℃ Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing





Applications:

The Sirivision 2.5 Gigabit Switch offers lightning-fast network speeds of up to 2.5 Gbps, making it an ideal solution for bandwidth-intensive applications such as video conferencing, online gaming, and large file transfers. This 2.5 Gb Ethernet switch supports Jumbo Frames of up to 9KB, allowing for efficient data transmission and reducing network congestion.

The LED indicators on the Sirivision 2.5 Gigabit Switch provide easy-to-read status updates, indicating power and link/activity. With its plug-and-play design, installation is quick and easy, and the switch is compatible with most operating systems, including Windows, Mac, and Linux.

Whether you're looking to upgrade your existing network or build a new one from scratch, the Sirivision 2.5 Gigabit Switch is a reliable and cost-effective solution. It is manufactured in Shenzhen, China, following strict quality standards, ensuring superior performance and durability.

Some of the product application occasions and scenarios where the Sirivision 2.5 Gigabit Switch can be used include:

  • Small to medium-sized businesses
  • Home networks
  • Video conferencing
  • Online gaming
  • Large file transfers
150W 8-Port RJ45 1000BASE-T Network Media 2.5 G PoE Switch With 2 10G SFP Slot, 802.3af/At (PoE+) Standard 0

Customization:

With our customization services, you can choose the number of ports you need for your network, making it a perfect fit for your business. Additionally, you can personalize your switch with your company logo or other branding elements.

Whether you need a 2.5 gb ethernet switch, 2.5 gig switch, or 2.5 gigabit ethernet switch, we can create a customized solution that fits your unique requirements. Contact us today to get started!



FAQ:

Q: What is the brand name of the 2.5 Gigabit Switch?

A: The brand name of the 2.5 Gigabit Switch is Sirivision.

Q: Where is the 2.5 Gigabit Switch manufactured?

A: The 2.5 Gigabit Switch is manufactured in Shenzhen, China.

Q: How many ports does the 2.5 Gigabit Switch have?

A: The 2.5 Gigabit Switch has 10 ports.

Q: What is the maximum data transfer rate of the 2.5 Gigabit Switch?

A: The maximum data transfer rate of the 2.5 Gigabit Switch is 2.5 Gigabits per second.
