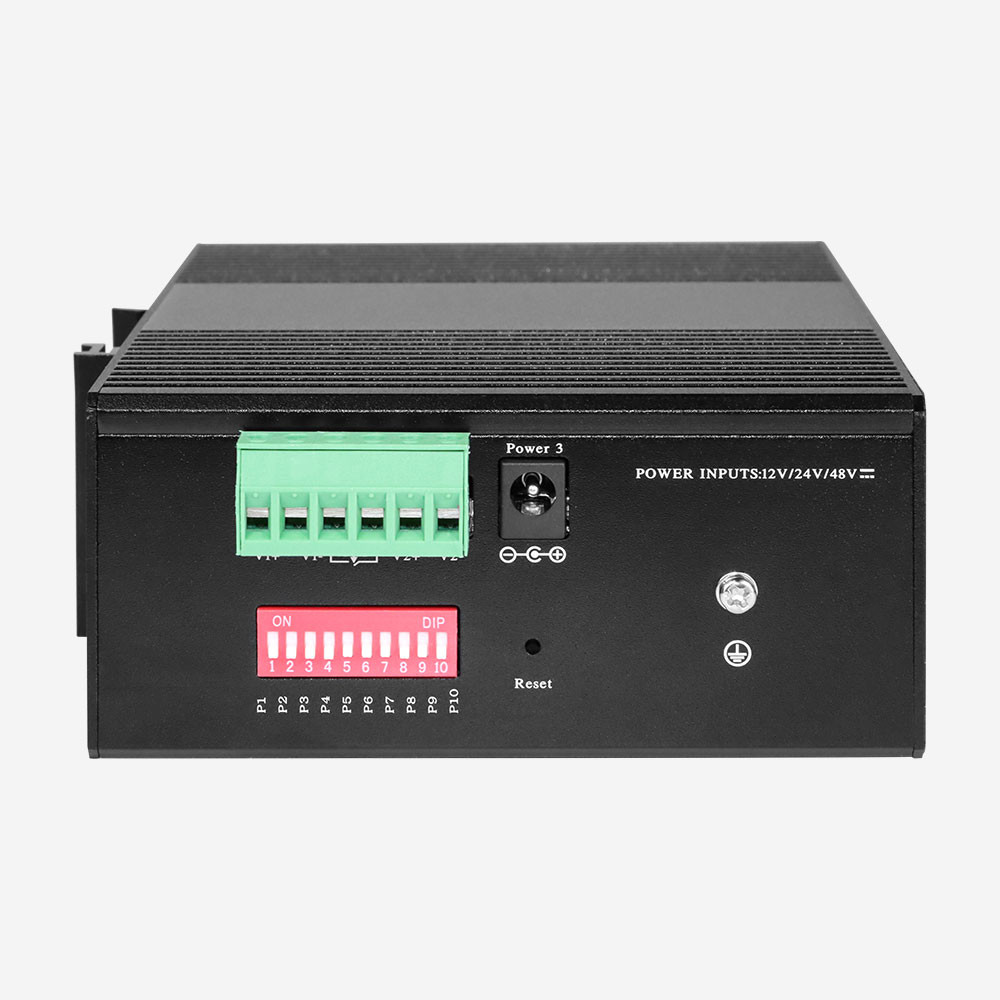

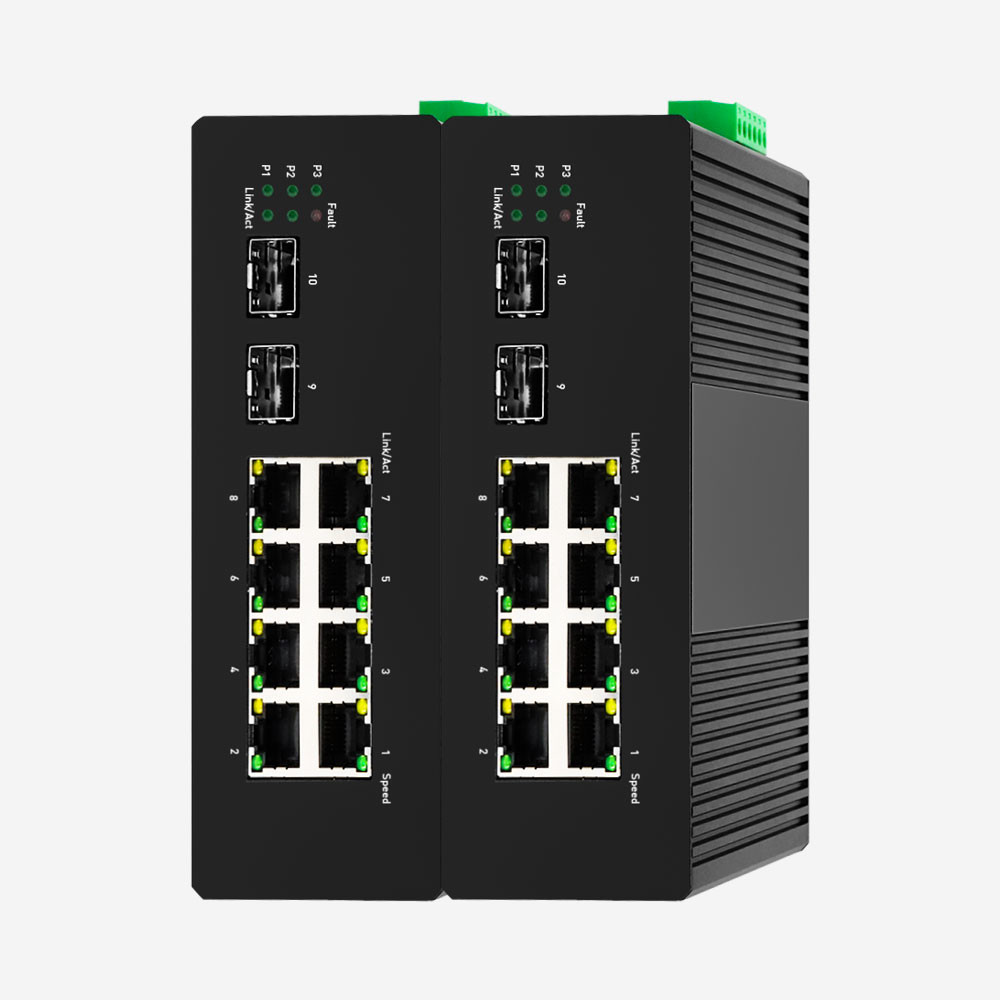

Reliable Alarm Gigabit Industrial Managed Switch Three Power Inputs Redundant Backup
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | Sirivision |
| Certification | CE, ROHS, FCC, UKCA |
| Model Number | SR-SG2210FI |
| Minimum Order Quantity | 20 |
| Price | Negotiation |
| Packaging Details | 1pc in box, 1pc Warranty Card in box |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 50000pcs Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Protection Level | IP30 | Connection Type | Wired |
|---|---|---|---|
| Power Input | 12~ 57 VDC, 2.5A(MAX) | Mac Address Table | 4K |
| Switching Capacity | 20Gbps | Installation | Rail/Wall Mount |
| Highlight | Alarm Gigabit Industrial Managed Switch,Industrial Managed Switch with Redundant Backup |
||
Product Description
Product Description:
Industrial Smart Switch is a highly reliable and cost-effective industrial managed Ethernet switch. With connection type of wired, it provides power supply of DC 12~ 57 V, and protection level of IP30. It also has a rated current of 2A and switching capacity of 20Gbps, making it ideal for industrial applications. As one of the leading industrial Ethernet switch manufacturers, our switch is designed to provide a secure and reliable network connection in harsh industrial environments.
The industrial managed switch provides port-level control and multiple security management functions. It supports up to 20Gbps switching capacity, allowing faster data transmission and processing. It also features comprehensive security measures such as IEEE 802.1x port-based authentication, MAC address filtering, and broadcast storm control to protect against malicious attacks. The rugged design and high reliability make it suitable for various industrial applications.
The industrial managed switch is an ideal choice for industries requiring secure and reliable network connection. It provides excellent performance, fast data transmission speed, and robust security measures for the most demanding industrial applications. If you are looking for an industrial managed switch, we are your perfect choice.
Features:
- Product Name: Industrial Smart Switch
- Rated Current: 2.5A
- Input Voltage: 12V-57V
- Power Supply: DC
- Size: 155mm*114.1mm*51.7mm
- Industrial Gigabit Switch
- Industrial Managed Switch
- Industrial Gigabit Switch Managed
- Industrial Ethernet Switch
Technical Parameters:
| Parameter | Details |
|---|---|
| Power Supply | DC |
| Forwarding Rate | 14.88Mpps |
| MAC Address Table | 4K |
| Working Temperature | -40℃-75℃ |
| Installation | DIN-rail/wall mount |
| Switching Capacity | 20Gbps |
| Size | 155*114.1*51.7 mm |
| Protection Level | IP30 |
| Material | Aluminum |
| Environment | Operating Temperature: -40℃ ~75℃ (-40℉~167℉) Storage Temperature: -40℃ ~85℃ (-40℉ ~185℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
Soft Features:
| L2 Switching Features | • IGMP Snooping - Supports IGMP Snooping - Supports 128 groups |
| • Link Aggregation - Supports static link aggregation - Supports 8 groups of aggregation, up to 4 ports per group |
|
| • Port Mirroring - One-to-one - Many-to-Many |
|
| • Support port isolation, port grouping | |
| VLAN | • Supports up to 32 VLANs (out of 4K VLAN IDs) |
| • Supports Port VLAN and 802.1Q VLAN | |
| • Supports Port-based/802.1p/DSCP priority | |
| Quality of Service (QoS) |
• Support 4 priority queues |
| • Port Speed Limit | |
| • Storm Control | |
| Management | • Support WEB network management, IP:192.168.1.199 User name and password is:admin |
| Ethernet Protocols | • IEEE 802.3 10BASE-T |
| • IEEE 802.3u 100BASE-TX/FX | |
| • IEEE 802.3ab 1000BASE-T | |
| • IEEE 802.3x Flow Control | |
| • IEEE 802.1q VLANs/VLAN tagging | |
| • IEEE 802.1p QoS |
Applications:
Industrial Smart Switch Applications and Scenarios
The Sirivision Industrial Smart Switch is an advanced, robust, and reliable industrial managed switch that supports wired connections, ranging from 12V-57V in voltage and can switch up to 20Gbps in capacity. It is suitable for a wide variety of industrial settings, including industrial managed switch, and industrial fiber switch scenarios. It is available with DC power sources.
Sirivision's Industrial Smart Switch has a wide range of applications in industrial settings, such as factories, and construction sites. It can be used to control and monitor a wide variety of devices, such as robots, machinery, and other automated systems. It also provides remote control and manual control capabilities, allowing users to easily manage and monitor their devices from a distance. It is also highly secure, providing data encryption and authentication capabilities to help protect data and systems.
The Sirivision Industrial Smart Switch is the perfect choice for industrial settings, providing reliable and secure switching and control capabilities. It is designed to be durable and efficient, with a long lifespan and low power consumption. It is also easy to install and configure, providing a user-friendly solution for managing and monitoring systems in industrial settings.
Customization:
Sirivision Industrial Smart Switch
Brand Name: Sirivision
Place of Origin: Shenzhen,China
Working Humidity: 5%-95%RH
Switching Capacity: 20Gbps
Power Supply: DC 12~ 57 V
Working Temperature: -40℃-75℃
Sirivision is one of the leading industrial ethernet switch manufacturers in China. Our industrial smart switch is designed for the most demanding industrial applications, with a switching capacity of 20Gbps, power supply of DC, working temperature of -40℃-75℃, and working humidity of 5%-95%RH. It is also an industrial managed Ethernet switch, ideal for industrial automation.
