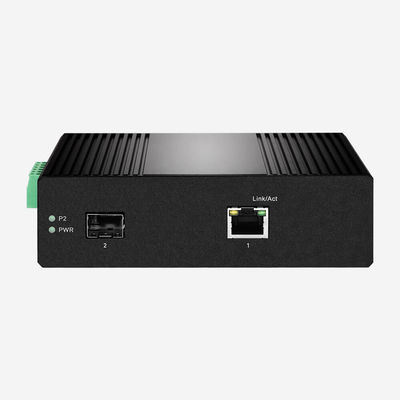

IP30 Aluminum Industrial Gigabit Switch 12V-57V With 1 RJ45 Port And 1 SFP Fiber Port

  • IP30 Aluminum Industrial Gigabit Switch 12V-57V With 1 RJ45 Port And 1 SFP Fiber Port
Place of Origin Shenzhen，China
Brand Name Sirivision
Certification CE, ROHS, FCC, UKCA
Model Number SR-SHG2102FI
Minimum Order Quantity 20
Price Negotiation
Packaging Details 1pc in box, 1pc Warranty Card in box
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50000pcs Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 12V-57V Working Temperature -40-75℃
Material Aluminum Power Supply DC
Protection Level IP30 Managed Smart Managed
Highlight

Aluminum Industrial Gigabit Switch

,

Industrial Gigabit Switch IP30

,

1 RJ45 Industrial Gigabit Switch
Leave a Message
Product Description

Product Description:

The Industrial Smart Switch is an advanced industrial switch designed for use in industrial environments. The switch is capable of providing power to multiple devices, operating at a wide range of temperatures from -40℃ to 75℃. This Industrial Smart Switch provides an output voltage of 12V to 57V and has a switching capacity of 4Gbps. It is designed to be user friendly and offers wired connection types. This industrial switch supports industrial fiber switch, industrial ethernet switch. It is the perfect solution for any industrial application.



Features:

  • Offers high-bandwidth connectivity with high-speed 1× Gigabit RJ45 port and 1× Gigabit SFP slot.
  • Supports IEEE 802.3, 802.3i, 802.3u, 802.3x.
  • 1GE RJ45 port and 1GE SFP slot feature a total 4 Gbps switching capacity.
  • lt works with wired devices to provide Gigabit connections, such as PCs, printers, and IPTV.
  • Supports IEEE 802.1Q VLAN, port monitoring, port aggregation, QoS, POE management bandwidth control, etc.
  • Two power inputs, redundant backup, greatly improving the reliability of product power supply.
  • Supports cloud management function, support WEB management, broadcast storm protection.





Technical Parameters:

Power Supply 12~ 57 V DC
Standards IEEE 802.3, 802.3i, 802.3u, 802.3x
Ports 1×10/100/1000Mbps RJ45 port +1×SFP port
Indicators 1 status indicator Link/ACT, 1 SFP fiber ports indicator (Link), power indicator
Forwarding Mode Store and Forward(Full Wire Speed)
Dimensions 136 mm *108 mm *38.5 mm
MAC Address Table 2K
Switching Capacity 4Gbps
Packet Forwarding Rate 2.976Mpps
Installation DIN-rail/wall mount
Environment Operating Temperature: -40℃ — 75℃ (-40℉~167℉)
Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
Standards_
EMS		 IEC/EN 61000-4-2,Level 4
IEC/EN 61000-4-3,Level 4
IEC/EN 61000-4-4,Level 4
IEC/EN 61000-4-5,Level 3
IEC/EN 61000-4-6,Level 3
IEC/EN 61000-4-8,Level 5
IEC/EN 61000-4-9,Level 5
IEC/EN 61000-4-10,Level 5



Soft Features:

L2 Switching Features • IGMP Snooping
- Supports IGMP Snooping
- Supports 128 groups
• Link Aggregation
- Supports static link aggregation
- Supports 8 groups of aggregation, up to 4 ports per group
• Port Mirroring
- One-to-one
- Many-to-Many
• Support port isolation, port grouping
VLAN • Supports up to 32 VLANs (out of 4K VLAN IDs)
• Supports Port VLAN and 802.1Q VLAN
• Supports Port-based/802.1p/DSCP priority
Quality of Service
(QoS)		 • Support 4 priority queues
• Port Speed Limit
• Storm Control
Management • Support WEB network management, IP:192.168.1.199
User name and password is:admin
Ethernet Protocols • IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX/FX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1q VLANs/VLAN tagging
• IEEE 802.1p QoS







Applications:

The Sirivision Industrial Smart Switch is designed to meet the needs of industrial applications, providing reliable, secure and high-performance networking solutions. With protection IP30 levels, the Switch can provide reliable operation even in harsh environments. The industrial managed switch, industrial Gigabit switch and Ethernet switch allowing for a secure, fast and reliable network connection.

IP30 Aluminum Industrial Gigabit Switch 12V-57V With 1 RJ45 Port And 1 SFP Fiber Port 0







Customization:

Sirivision Industrial Smart Switch:

  • Brand Name: Sirivision
  • Place of Origin: Shenzhen,China
  • Protection Level: IP30
  • Power Supply: DC 12V-57V
  • Connection Type: Wired
  • Material: Aluminum



FAQ:

Q: What is the brand name of the Industrial Smart Switch?
A: The brand name of the Industrial Smart Switch is Sirivision.
Q: Where is the Industrial Smart Switch manufactured?
A: The Industrial Smart Switch is manufactured in Shenzhen, China.
Q: What features does the Industrial Smart Switch have?
A: The Industrial Smart Switch has features such as remote monitoring, easy configuration, and high reliability.
Q: What is the scope of application for the Industrial Smart Switch?
A: The Industrial Smart Switch is suitable for industrial automation equipment, such as intelligent lighting, smart street lamps, home security, etc.
Q: What is the warranty period for the Industrial Smart Switch?
A: The warranty period for the Industrial Smart Switch is 3 years.
