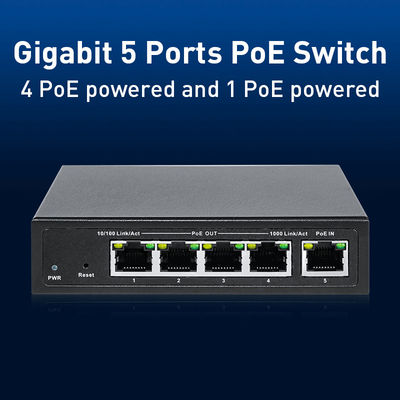

5 Port Unmanaged PoE Switch With Port Trunking Support IEEE 802.3bt Network Protocols

  • 5 Port Unmanaged PoE Switch With Port Trunking Support IEEE 802.3bt Network Protocols
Place of Origin Shenzhen，China
Brand Name Sirivision
Certification CE, ROHS, FCC, UKCA
Model Number SR-SGP2005P-90
Minimum Order Quantity 20
Price Negotiation
Packaging Details 1pc in box, 1pc Warranty Card in box
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50000pcs Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
LED Indicators Power, Link/Activity PoE Power Output 60W
Switch Architecture Store-and-Forward Operating Temperature 0°C To 45°C
Port Trunking Yes Power Input 90W
High Light

5 Port Smart PoE Switch

,

Smart PoE Switch With VLAN Support
Leave a Message
Product Description

Product Description:

Our Unmanaged PoE Switch is a cost-effective PoE switch designed for businesses seeking to upgrade their network infrastructure. It features 5 10/100/1000M auto-sensing RJ45 ports, a store-and-forward switch architecture, and port trunking. Port 5 is a POE power receiving port, which meets the IEEE 802.3af/at/bt standard and supports up to 90W input. Ports 1-4 are POE power supply ports, which meet the IEEE 802.3af/at standard. This unmanaged PoE switch is designed for easy setup and use, and can provide your business with reliable, high-speed network connections. With its port trunking capabilities, this switch can help you maximize your network efficiency and performance. Whether you're looking to expand an existing network or upgrade an older network, this Unmanaged PoE Switch is an ideal solution for businesses looking for reliable, high-performance networking solutions.



Features:

  • Product Name: Unmanaged PoE Switch
  • PoE Power Output: 60W
  • Gigabit PoE Switch
  • PoE Extender Switch
  •  Port Trunking: Yes
  • Switch Architecture: Store-and-Forward
  • Operating Temperature: 0°C To 45°C


Technical Parameters:

Property Value
Product Name Unmanaged PoE Switch
Network Protocols IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE 802.3x, IEEE802.3at, IEEE802.3af, IEEE802.3bt
Port Trunking Yes
Operating Temperature 0°C To 45°C (0°F To 113°F)
Switch Architecture Store-and-Forward
Number of Ports 5
PoE Ports 4 x 802.3at/af standard POE ports
Ports 5 ×10/100/1000Mbps RJ45 Ports
Indicator light 5 Speed Indicator, 5 Link/Act Indicator, Power Input Indicator
PoE Pin Definitions 1/2(+),3/6(-)
PoE Output Power 60W
Dimensions 119 * 89 * 28.2 mm
Switching Capacity 10Gbps
Forwarding Rate 7.44Mpps
MAC Address Table 2K
Cache 1.5Mbit
Environment Operating Temperature: 0℃ ~45℃ (0℉~113℉) Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing


Applications:

Sirivision's Unmanaged PoE Switch is the perfect combination of performance and flexibility for your business. It is a Unmanaged Gigabit PoE switch with 5 ports, 4 of which are POE power supply ports. Port 5 is a POE power receiving port, which meets the IEEE 802.3af/at/bt standard and supports up to 90W input. It is designed to handle the most demanding applications in the most challenging environments. With its store-and-forward architecture, Sirivision's Smart PoE Switch provides maximum performance and reliability. The switch is also equipped with LED indicators for power and link/activity for easy monitoring.



The Unmanaged PoE Switch is ideal for a variety of applications, from small offices and workgroups to large enterprise networks. It is ideal for voice, video, and data applications, as well as power over Ethernet (PoE) applications. It can be used to power PoE-enabled devices such as IP phones, IP cameras, access points, and other PoE-enabled devices. The switch is also capable of port trunking, which allows you to combine two ports into one for increased bandwidth.



Sirivision's Unmanaged PoE Switch is an ideal choice for businesses that need reliable, high-performance, and cost-effective networking. It is designed to provide maximum flexibility and performance, while also providing cost savings. With its robust feature set, it is the perfect choice for those who need a reliable, high-performance, and cost-effective solution for their networking needs.

 5 Port Unmanaged PoE Switch With Port Trunking Support IEEE 802.3bt Network Protocols 0





Customization:

Sirivision Unmanaged PoE Switch
Brand Name: Sirivision
Place of Origin: Shenzhen, China
Number of Ports: 5 10/100/1000M RJ45 ports
PoE Power Output: 60W
Port Trunking: Yes
Data Transfer Rate: 10/100/1000 Mbps

The Sirivision Unmanaged PoE Switch is a powerful device that provides 4 PoE+ ports with 60W of power output, supports port trunking, and data transfer rates of up to 10/100/1000 Mbps. It is ideal for connecting and powering multiple devices, such as IP phones, cameras, and access points. With its easy to use, plug-and-play design, you can quickly and easily set up your network with the Sirivision Unmanaged PoE Switch.



FAQ:

Q: What is a Unmanaged PoE Switch?
A: Sirivision Unmanaged PoE Switch is a network switch with Power over Ethernet (PoE) technology from Shenzhen, China. It can provide up to 60W of power to connected devices and is perfect for high-bandwidth applications.
Q: How many ports does a Unmanaged PoE Switch have?
A: Sirivision Unmanaged PoE Switch has 5 ports, 1-4 port supports PoE output.
Q: What functions does a Unmanaged PoE Switch provide?
A: Sirivision Unmanaged PoE Switch provides a wide range of functions, including Port Trunking.
Q: What type of network connection does a Unmanaged PoE Switch support?
A: Sirivision Unmanaged PoE Switch supports 10/100/1000BaseT, and is backward compatible with 10/100BaseT networks.
Q: What is the power output of a Unmanaged PoE Switch?
A: Sirivision Unmanaged PoE Switch can provide up to 30W of power output for each port.
