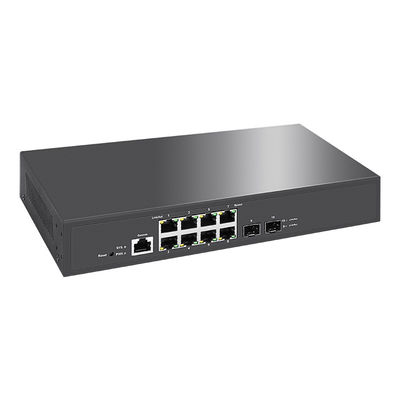

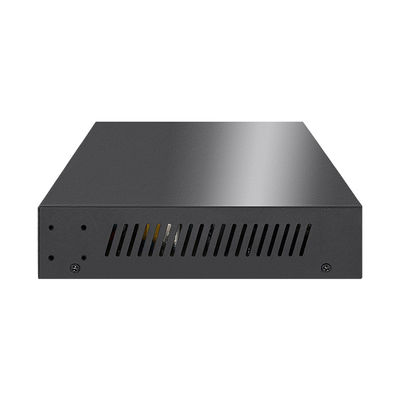

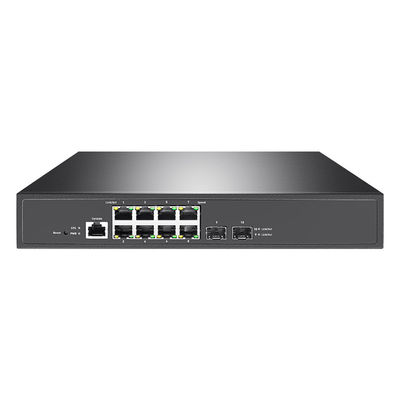

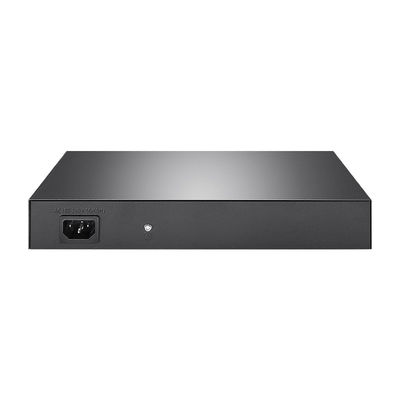

Rack Mount 8-Port Gigabit With 2G SFP Slots Uplink L2+ SNMP Managed 150W PoE Switch For Security Camera
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | Sirivision/ OEM/ODM |
| Certification | CE, ROHS, FCC, UKCA |
| Model Number | SR-SG3210FP |
| Minimum Order Quantity | 20 |
| Price | To be negotiated |
| Packaging Details | Carton |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 50000pcs Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Management | Layer 2+ |
|---|---|---|---|
| Packet Forwarding Rate | 14.88Mpps | Jumbo Frame | 10KB |
| Input Voltage | AC100~240V | MAC Address Table | 8K |
| High Light | 2 Gigabit SFP Layer 2 Plus Switch,Layer 2 Plus Switch 20Gbps,SNMP VCT Managed Gigabit Switch |
||
Product Description
Rack Mountable 8-Port Gigabit With 2G SFP Slots Uplink L2+ SNMP Managed PoE Switch
Description Of The Managed Gigabit Ethernet Switch:
SR-SG3210F is a Layer 2 plus managed switch equipped with eight 10/100/1000M adaptive RJ45 fiber ports and one Console port. It supports perfect SNMP management, VCT, DDM (Digital Diagnostic Monitoring) and other functions to quickly detect network failure and reduce the difficulty of operation and maintenance.
Features Of The 10 Port Gigabit Managed Switch:
- Provides 8 10/100/1000Mbps RJ45 ports, 2 Gigabit SFP fiber ports and 1 console port.
- Supports IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x , IEEE802.3az.
- Supports MAC address auto-learning and auto-aging.
- 19 inches full metal iron shell and internal power adapter design, suitable for rack installation.
- It supports standard 802.1X authentication access, and at the same time supports extended 802.1X authentication access, which can effectively prevent IP conflicts and PC cloning, and realize extended and enhanced functions such as static IP address delivery.
- Supports QoS, port mirroring, link aggregation protocol.
Product Spectification Of The 8 Port Switch With 2 Sfp:
| SR-SG3210FP | |
| Power Supply | AC100~240V 50/60Hz |
| Standards | IEEE 802.3i,802.3u,802.3ab,802.3x,802.3z |
| Ports | 8 x 10/100/1000Mbps RJ45 ports,2 x 1000Mbps SFP ports,1x Console port |
| Indicators | Electrical port indicators, sfp fiber port indicators, power input indicator, system running indicator. |
| Network medium |
10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) 1000Base-T: UTP category 5e, 6 cable (maximum 100m) 1000Base-X:MMF,SMF |
| Dimensions | 271*181.5*44.5 mm |
| Transfer Method | Store-and-Forward |
| MAC Address Table | 8K |
| Switching Capacity | 20Gbps |
| Packet Forwarding Rate | 14.88Mpps |
| Packet Buffer | 4.1Mbit |
| Jumbo Frame | 10KBytes |
| Environment | Operating Temperature: 0℃ ~45℃ (0℉~113℉) Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
Soft Features:
| L3 Features | IPV4/IPV6 | ||||
| Dynamic ARP | |||||
| L2 Features | Flow Control | ||||
| 802.3x (full duplex) | |||||
| Back pressure (half duplex) | |||||
| Link aggregation | |||||
| Spanning Tree | 802.1D (STP),802.1w (RSTP),802.1s (MSTP) | ||||
| ERPS,BPDU Filtering | |||||
| Automatic Edge Port | |||||
| VLAN | 8 groups Protocol-based VLAN | ||||
| VLAN Translation, VLAN VPN, GVRP | |||||
| 256 MAC-based VLAN, Private VLAN | |||||
| Voice VLAN | |||||
| Monitoring VLANs | |||||
| IEEE802.1q VLAN,QinQ (IEEE 802.1ad) | |||||
| 4096 static VLANs | |||||
| multicast | IGMP Snooping(v1,v2,v3) | ||||
| MLD Snooping V1/V2 | |||||
| Multicast VLAN Registration (MVR) | |||||
| QoS | 8 priority queues per port | ||||
| Support port-based and VLAN-based PolicyMap binding | |||||
| TOS, DSCP, 802.1p priority field rewrites | |||||
| Support flow classification based on ACL flow, COS, TOS, DSCP | |||||
| Queue Scheduling WRR,WFQ,WRR+SP, WFQ+SP | |||||
| ACL | Custom ACL, MAC-based, IP-based, port-based | ||||
| Security Features | IEEE 802.1X certification, Guest VLAN, Port-based, Host-based, MAC Auth, Web Auth | ||||
| Storm Control, Ports Security, Port Isolation, HTTPS | |||||
| DHCP Snooping, CPU Defence Engine, DoS Prevention, 256 IP Source Guard | |||||
| Dynamic ARP Check | |||||
| IP, MAC, Port Binding | |||||
| Dynamic VLAN Assignment, Management Access | |||||
| BPDU,SSH v1/v2, 8 TACACS+, 8 RADIUS | |||||
| Management | Supported CLI, Console, SNMP v1/v2/V3, Web | ||||
| Diagnosis | mirror Many-to-One | ||||
| UDLD,System Log (RFC3164) | |||||
| System Diagnosis, Network Diagnosis | |||||
